Overview

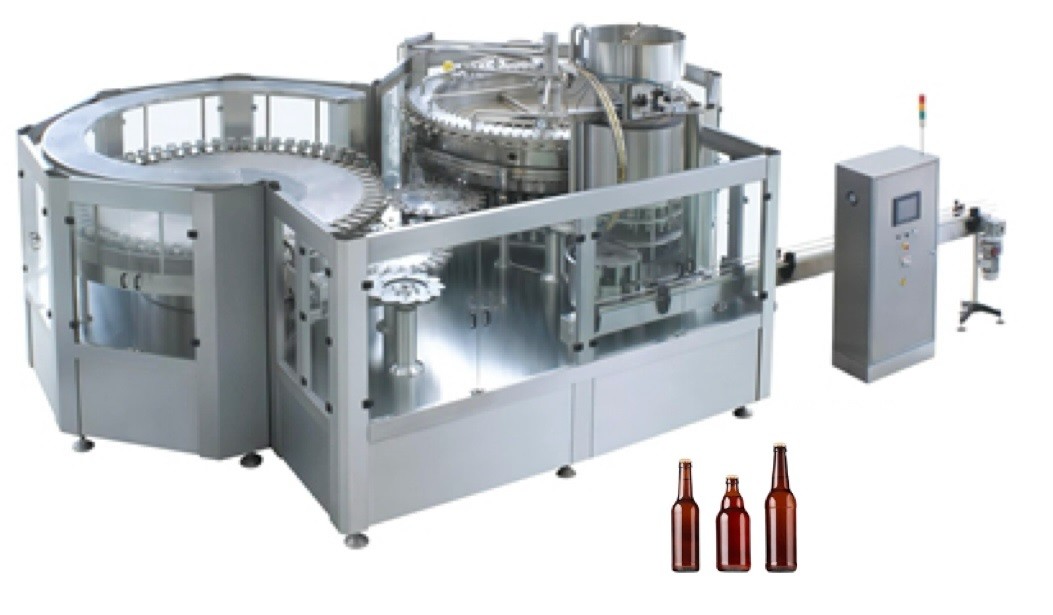

The machine includes washing, filling and capping. Suitable for carbonated beverage filling lines.The filling of gas containing beverages is realized by means of equal pressure filling and low temperature control.The whole machine is made of SUS304 stainless steel, high-quality materials make the machine life longer

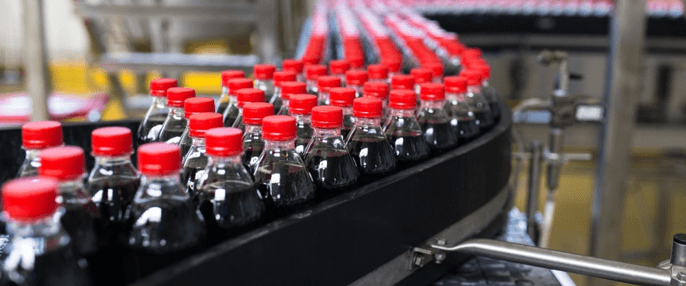

Final Product
Product Paramenters
Type |
Automatic bottle CSD Drinks filling machine |
Colour |
Sliver Grey |
Usage |
Liquid Filling &Packing |
Filling Valume |
300ml-2000ml |
Rinsing pressure |
0.2~0.3Mpa |
Power |
3ph,380V/50Hz,1.5~11.5KW, |
Machine Parameters
Model | CGF 8-8-4 | CGF 14-12-5 | CGF 18-18-6 | CGF 24-24-8 |
Washing head | 8 | 14 | 18 | 24 |
Filling head | 8 | 12 | 18 | 24 |
Capping head | 4 | 5 | 6 | 8 |
Production capacity | 2000bph | 3500bph | 8000bph | 10000bph |
Bottle height | 330mm | 330mm | 330mm | 330mm |
Bottle diameter | 50~100mm | 50~100mm | 50~100mm | 50~100mm |
Bottle volume | 0.2~2L | 0.2~2L | 0.2~2L | 0.2~2L |
Rinsing pressure | 0.2~0.3Mpa | 0.2~0.3Mpa | 0.2~0.3Mpa | 0.2~0.3Mpa |
Rinsing water consumption | 0.5T/H | 0.5T/H | 0.5T/H | 0.5T/H |
Filling precision | ±2~3% | ±2~3% | ±2~3% | ±2~3% |
Power | 3ph,380V/50Hz,1.5Kw | 3ph,380V/50Hz,1.5Kw | 3ph,380V/50Hz,2Kw | 3ph,380V/50Hz,3Kw |

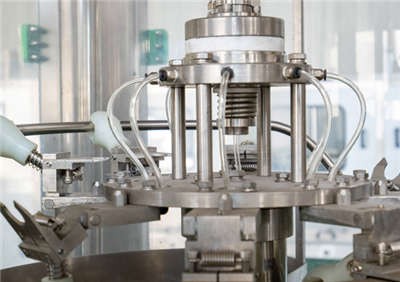

Washing
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.

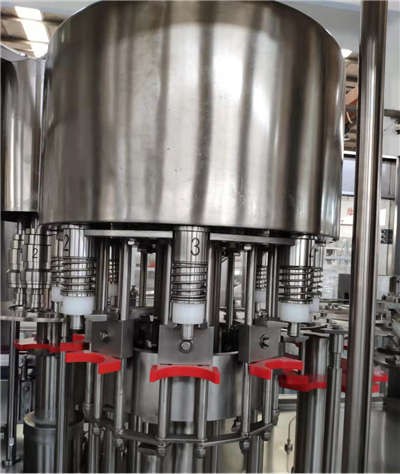

Filling
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing

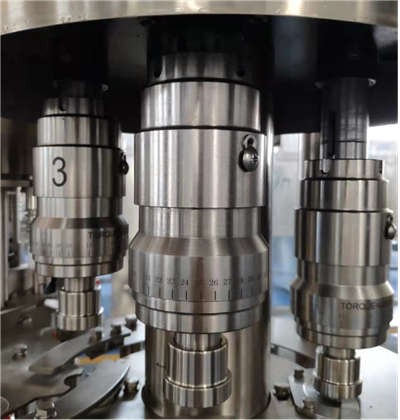

Capping
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
