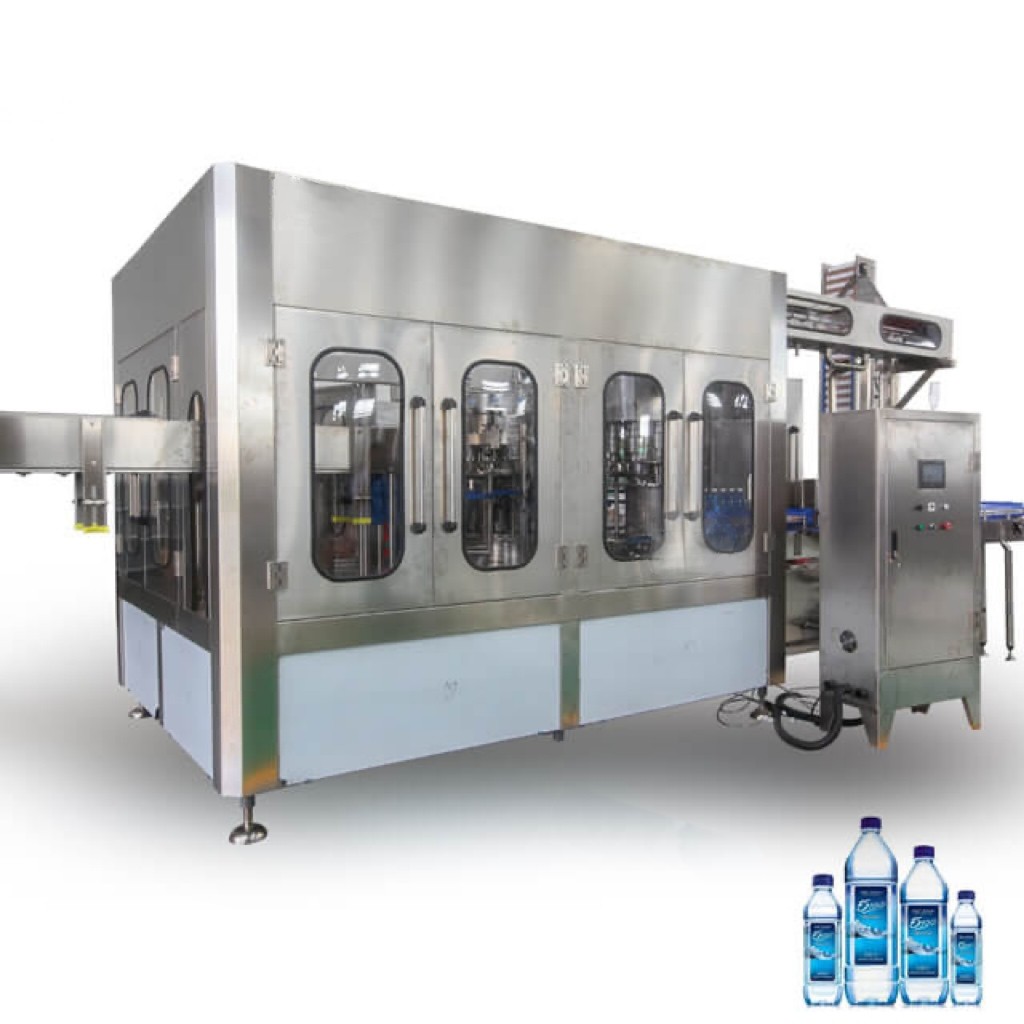

4000BPH Automatic 3-in-1 Bottled Pure Water Filling Machine

This 3-in-1 filling machine is automatic washing，filling and capping. This washing filling capping machine is mainly used for Non-aerated carbon dioxide drink, such as mineral water, pure water and so on. The machine design is shorten the time for the drink material contact with outside, Increase the sanitation condition throughout economy benefit.

INQUIRY

Product Details

Product Tags

Overview

This type of washing, filling and capping machine is mainly used for filling non-gas carbonated beverages such as mineral water and pure water. The machine design adheres to the concepts of water saving, environmental protection and sanitation. The mechanical valve is adopted to save water by the water outlet mode; the bottle mouth is clamped for filling, which shortens the contact time between the beverage and the air.

Final Product

Product Paramenters

Type	Automatic bottle filling machine
Colour	Sliver Grey
Usage	Liquid Filling ＆Packing
Filling Valume	300ml-2000ml
Rinsing pressure	0.2~0.3Mpa
Power	3ph，380V/50Hz，1.5~11.5KW，

Machine Parameters

Model	CGF 8-8-4	CGF 14-12-5	CGF 18-18-6	CGF 24-24-8
Washing head	8	14	18	24
Filling head	8	12	18	24
Capping head	4	5	6	8
Production capacity	2000bph	3500bph	8000bph	11000-14000bph
Bottle height	330mm	330mm	330mm	330mm
Bottle diameter	50～100mm	50～100mm	50～100mm	50～100mm
Bottle volume	0.2～2L	0.2～2L	0.2～2L	0.2～2L
Rinsing pressure	0.2～0.3Mpa	0.2～0.3Mpa	0.2～0.3Mpa	0.2～0.3Mpa
Rinsing water consumption	0.5T/H	0.5T/H	0.5T/H	0.5T/H
Filling precision	±2～3％	±2～3％	±2～3％	±2～3％
Power	3ph,380V/50Hz,1.5Kw	3ph,380V/50Hz,1.5Kw	3ph,380V/50Hz,2Kw	3ph,380V/50Hz,3Kw

Washing

- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.

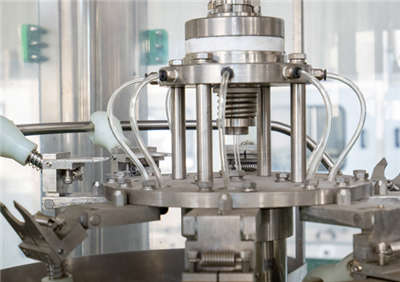

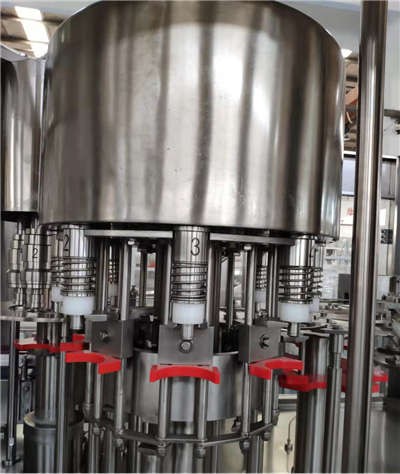

Filling

- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing

Capping

- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
- All 304/316 stainless steel construction

- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
