4000BPH Automatic 3-in-1 Fruit Orange Juice Filling Machine

This pet bottle juice plup filling machinery has washer,filler,capper three functions in one body, total process is automatic. It is suitable for high temperature resistant PET bottled juice and tea drink filling. It applies advanced micro-pressure gravity type filling principle, with perfectrecirculation system, also can reach separately gas return, without contacting with material, avoid secondary pollution and oxygen. It is made of high quality SUS304 stainless steel. Main components of this

INQUIRY

Product Details

Product Tags

Overview

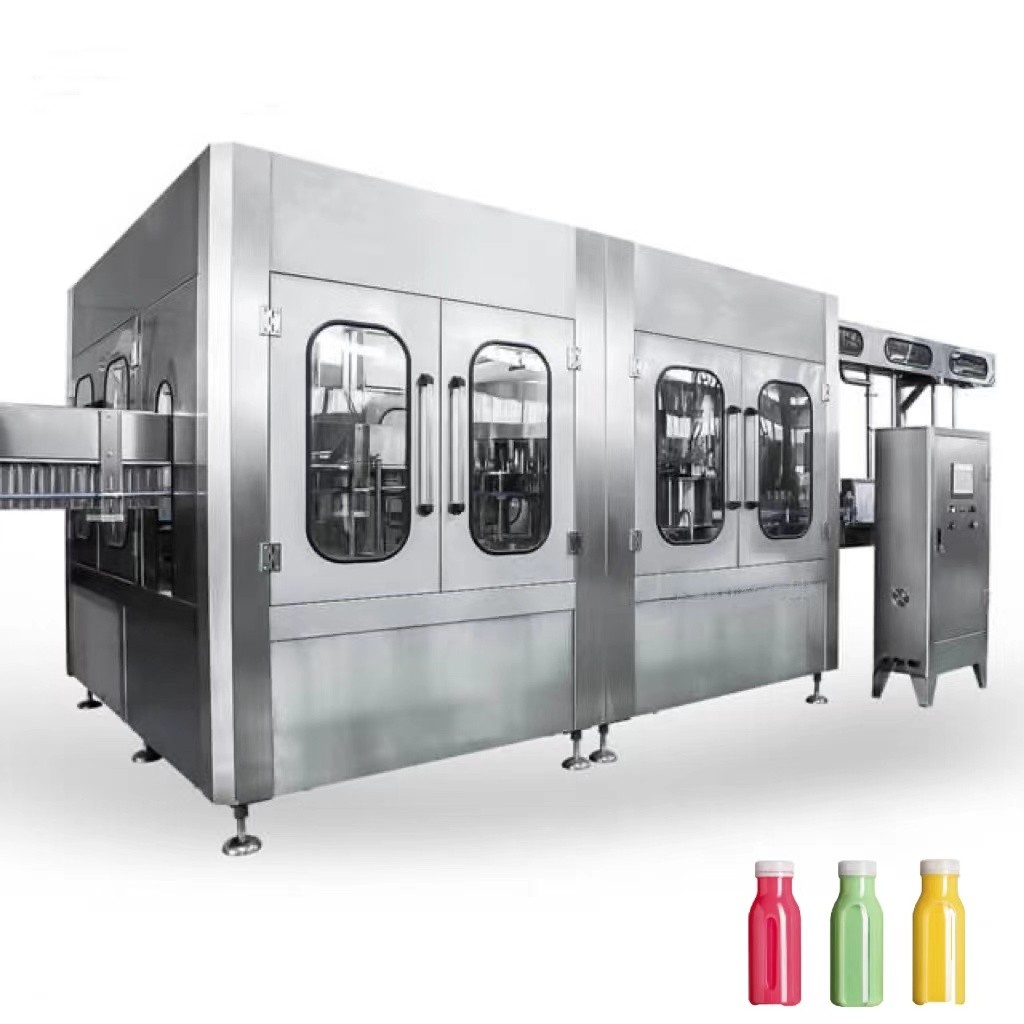

This pet bottle juice plup filling machinery has washer,filler,capper three functions in one body, total process is automatic.

It is suitable for high temperature resistant PET bottled juice and tea drink filling.

It applies advanced micro-pressure gravity type filling principle, with perfectrecirculation system, also can reach separately gas return, without contacting with material, avoid secondary pollution and oxygen.

It is made of high quality SUS304 stainless steel. Main components of this fruit juice packaging machine are processed precisely by CNC machine tool.

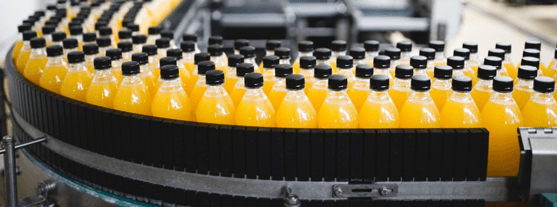

Final Product

Product Paramenters

Type	Automatic bottle juice filling machine
Colour	Sliver Grey
Usage	Liquid Filling ＆Packing
Filling Valume	300ml-2000ml
Rinsing pressure	0.2~0.3Mpa
Power	3ph，380V/50Hz，1.5~11.5KW，

Machine Parameters

Model	CGF 8-8-4	CGF 14-12-5	CGF 18-18-6	CGF 24-24-8
Washing head	8	14	18	24
Filling head	8	12	18	24
Capping head	4	5	6	8
Production capacity	2000bph	3500bph	8000bph	10000bph
Bottle height	330mm	330mm	330mm	330mm
Bottle diameter	50～100mm	50～100mm	50～100mm	50～100mm
Bottle volume	0.2～2L	0.2～2L	0.2～2L	0.2～2L
Rinsing pressure	0.2～0.3Mpa	0.2～0.3Mpa	0.2～0.3Mpa	0.2～0.3Mpa
Rinsing water consumption	0.5T/H	0.5T/H	0.5T/H	0.5T/H
Filling precision	±2～3％	±2～3％	±2～3％	±2～3％
Power	3ph,380V/50Hz,1.5Kw	3ph,380V/50Hz,1.5Kw	3ph,380V/50Hz,2Kw	3ph,380V/50Hz,3Kw

Washing

- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.

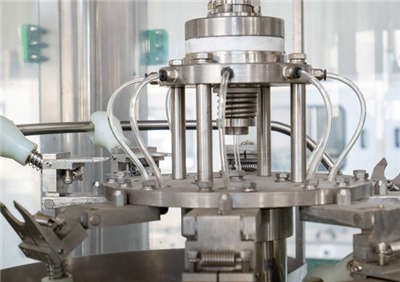

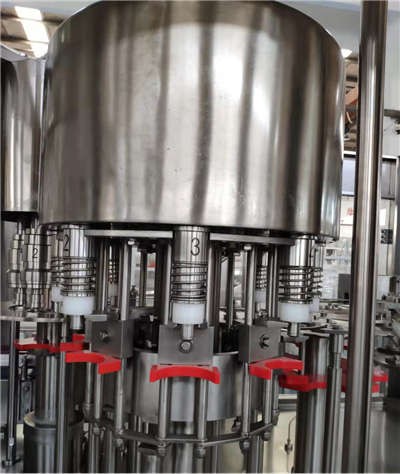

Filling

- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing

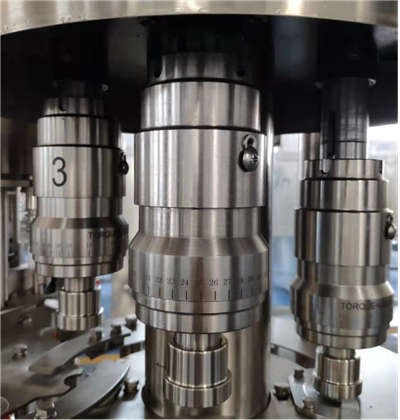

Capping

- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
- All 304/316 stainless steel construction

- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
