Overview: In the production and filling lines of mineral water, juice, and carbonated beverages, we all need to process and mix the water before filling. Only in this way can it reach the edible standard.

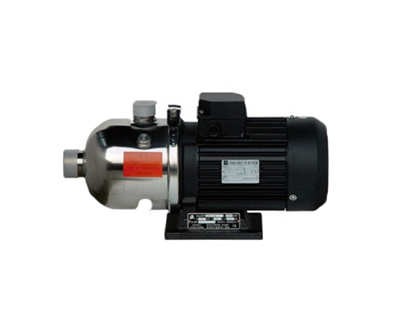

Stainless steel Raw water pump
A stainless steel raw water pump is an essential device used predominantly for transporting untreated water from natural or artificial sources. Crafted from stainless steel, these pumps are highly favored for their durability and resistance to corrosion, making them ideal for handling water that may contain various impurities such as silt, microorganisms, and chemical residues.
Material |
Pump body stainless steel SUS304 |
Flow |
4m³/H |
Flow length |
40m |
Power |
2.5KW |
Size |
300*263*767mm |
Place of origin |
CNP |
Weight |
50kg |

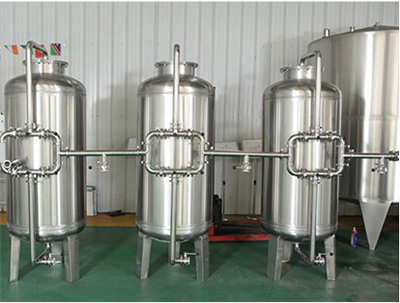

Quartz sand filter/Activated carbon filter/Precision filter
-1) Quartz sand filter:
Quartz sand filler is used as the filter material. The filter material has the dual functions of adsorption and filtration, which is beneficial to the removal of impurities in the water.
Size |
1200*1000*700mm |
Thickness |
3mm |
Material |
SUS304 stainless steel (Food grade) —Made in china. |
Filter medium |
Sand |
Specification |
ф2mm、ф1mm、ф0.5mm、ф0.2mm |
Filtering volume |
4m³/h |
Weight |
1030kg |
-2) Activated carbon filter:
Use granular activated carbon to further remove residual chlorine, organic matter, suspended matter and other impurities in the effluent from the mechanical filter, providing good conditions for the subsequent reverse osmosis treatment. The smaller the activated carbon particles, the better the filtering effect.
Size |
1200*1000*700mm |
Material |
SUS304 stainless steel (Food grade) |
Medium |
Shuck shape active carbon |
Treating volume |
4m³/h |
Weight |
1030kg |
-3)Precision filter
It is mainly used to remove the tiny impurity. Open the filter to remove the impurity.
Size |
Φ500×1700 mm |
Thickness |
3mm |
Material |
SUS304 stainless steel (Food grade ) |
Medium |
Polypropylene film 6pieces |
Filter precision |
5μm, 1μm |
Treating volume |
4³/h |
Weight |
100kg |
RO system
This device is used to remove the germs, the harmful inorganic ion, and organic ion; remove heavy metals and salt; rearrange water structure. It is the ideal equipment to make high standard pure drink water.
Main design data |
First grade ≥2m³/H (25ºC) |
Recycle rate |
65-70% |
Power |
11.55kw |
Dimension |
2100×850×1800mm |
Weight |
800kg |

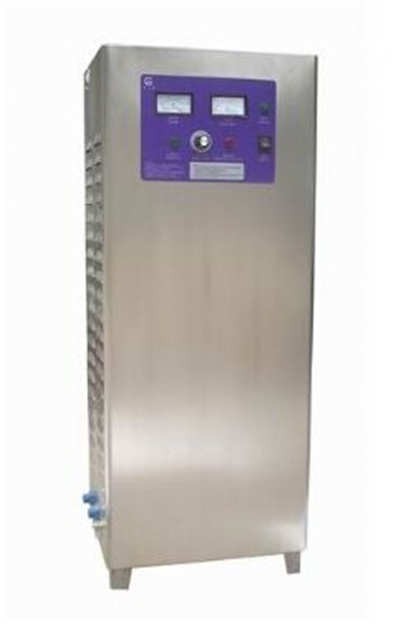

Ozone generator
It is used for food and beverage industry: workshop, asepsis room, locker room, warehouse and production apparatus disinfection and sterilization, is HACCP standard production, the majority of food plant air purification, sterilization and disinfection of the powerful guarantee.
Total power |
1.5kw |
Ozone Capacity |
15g |
Sterilization area |
800m2 |
Machine size |
900*500*150mm |

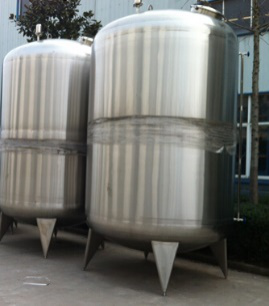

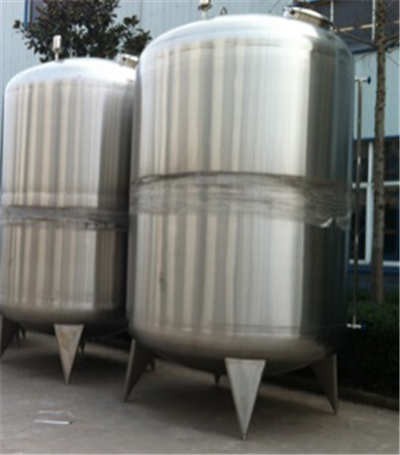

Pure water tank
The pure water tank is made by food grade SUS304 stainless steel plate.It is satisfied of National Health Standards, the main body of the tank won’t be dust. No Leakage, No breeding algae, It won’t be two time pollution sources.
Material |
SUS304 stainless steel (Food grade ) |
Thickness |
3mm |
Pipe and valves
Stainless steel pipe valve connected with a major role in between each equipment, isolation devices between devices, regulating the flow and prevent the return of the pressure regulation and excretion.It can be used for the control of air, water, steam, all kinds of corrosive media, mud, oil, liquid metal in various types of fluid flow.
Material:SUS304
